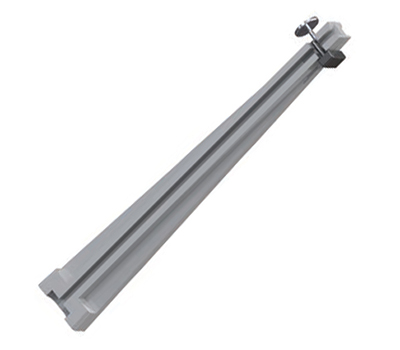

垂直安装电路板导轨 VMCG
导轨：灰色玻钎尼龙6
. 锁销：黑色HDPE
. 金属安装钉：不锈钢
. 螺钉：镀锌软钢
. 内螺纹：黄铜

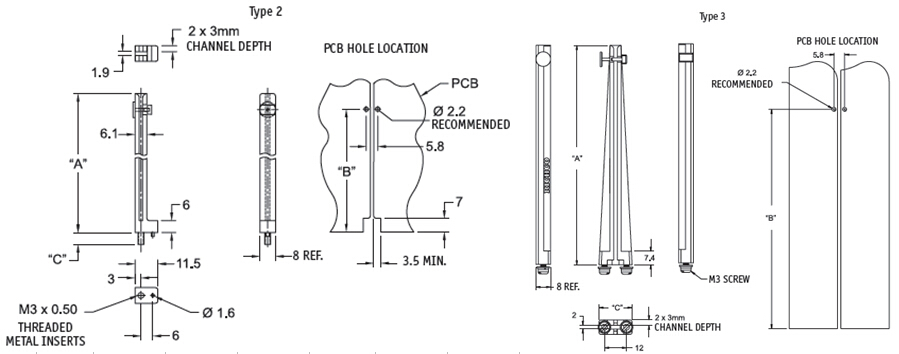

| 料号 | 类型 | "A" (mm) | "B" (mm) | "C" (mm) | "D" (mm) | "E" (mm) | 适合PCB厚度 | 包装数量 |
| VMCG-100-MPBK-K | 2 | 100 | 92 | 8.9 | - | - | 1.6 | 100 |
| VMCG-135-MPBK-K | 1 | 135 | 126.5 | - | 3 | 2 | 1.6 | 100 |
| VMCG-160-MPBK-K | 1 | 160 | 112.5 | - | 3 | 2 | 1.6 | 100 |
| VMCG-320-MPBK-K | 3 | 120 | 112.5 | 18 | - | - | 1.6 | 100 |
| VMCG-330-MPBK-K | 1 | 120 | 112.5 | - | 3 | 2 | 1.6 | 100 |
| VMCG-360-MPBK-K | 3 | 160 | 112.5 | 19 | - | - | 1.6 | 100 |
| VMCG-50-MPBK-K | 1 | 46.5 | 42.3 | - | 2.6 | 2.7 | 1.6 | 100 |
| VMCG-65-MPBK-K | 1 | 65 | 56.5 | - | 3 | 2 | 1.6 | 100 |
| VMCG-70-MPBK-K | 2 | 70.1 | 62.5 | 5.6 | - | - | 1.6 | 100 |
| VMCG-90-MPBK-K | 1 | 90 | 81.5 | - | 3 | 2 | 1.6 | 100 |
