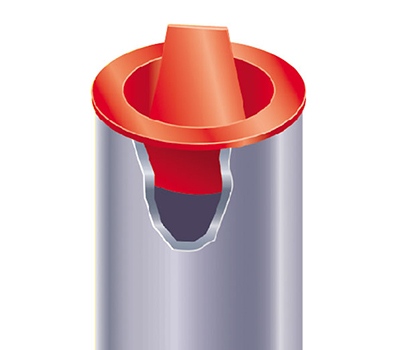

SR1068 中心拉片塞
红色LDPE
. 中心的拉片易于装配和拆除
. 提供在生产，存储和运输中不受损伤，防尘，防潮和防腐蚀的优质保护

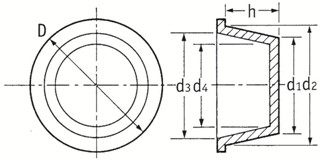

| 料号 | 配用螺纹尺寸 公制 | 配用螺纹尺寸 UNF | 配用螺纹尺寸 BSP | d1 (mm) | d2 (mm) | D (mm) | h (mm) | H (mm) | 颜色 | 包装数量 |
| 110029 | M8 | 5/16" | - | 6.2 | 7.7 | 11.1 | 9.5 | 20.5 | 红色 | 10000 |
| CP-6 | - | - | - | 6.8 | 8.5 | 11.9 | 10.3 | 15.9 | 橙色 | 25000 |
| 110030 | M10 | 7/16" | 1/8" | 8.4 | 10.0 | 13.5 | 9.5 | 20.5 | 红色 | 10000 |
| 110031 | - | 3/8" | - | 9.5 | 10.8 | 14.0 | 9.5 | 20.5 | 红色 | 10000 |
| CP-9 | - | - | - | 9.2 | 10.9 | 15.1 | 9.5 | 19.1 | 橙色 | 14000 |
| CP-10 | - | - | - | 10.2 | 11.8 | 15.9 | 9.5 | 19.1 | 橙色 | 12000 |
| 110032 | M12 | 1/2" | 1/4" | 10.9 | 12.3 | 15.9 | 9.5 | 20.3 | 红色 | 10000 |
| CP-12 | - | - | - | 11.4 | 13.0 | 16.7 | 10.3 | 14.3 | 橙色 | 10000 |
| 110033 | M14 | 9/16" | - | 11.7 | 13.7 | 17.2 | 11.0 | 22.0 | 红色 | 5000 |
| CP-14 | - | - | - | 12.7 | 14.4 | 18.3 | 11.9 | 20.6 | 橙色 | 7500 |
| 110034 | M16 | 5/8" | 3/8" | 14.2 | 16.0 | 19.0 | 11.9 | 22.9 | 红色 | 5000 |
| CP-18 | - | - | - | 14.7 | 17.0 | 20.6 | 13.5 | 19.1 | 橙色 | 5500 |
| CP-19 | - | - | - | 15.5 | 17.7 | 21.3 | 13.5 | 19.8 | 橙色 | 5000 |
| 110035 | M20 | 3/4" | - | 16.4 | 18.3 | 22.2 | 12.3 | 23.5 | 红色 | 5000 |
| 110036 | - | 13/16" | 1/2" | 17.8 | 20.0 | 23.8 | 13.7 | 24.5 | 红色 | 5000 |
| CP-24 | - | - | - | 18.5 | 21.0 | 25.4 | 15.0 | 21.3 | 橙色 | 5000 |
| 110037 | M24 | 7/8" | 5/8" | 21.3 | 23.2 | 27.0 | 15.9 | 26.9 | 红色 | 3000 |
| CP-31 | - | - | - | 22.1 | 24.7 | 28.5 | 19.1 | 25.4 | 橙色 | 4000 |
| 10418 | - | 1” | - | 22.5 | 25.5 | 28.9 | 17.8 | 29.0 | 红色 | 2500 |
| 110038 | M28, M30 | 11/8" | - | 24.7 | 27.7 | 32.0 | 19.0 | 30.0 | 红色 | 2000 |
| CP-37 | - | - | - | 24.6 | 27.7 | 31.8 | 19.8 | 26.2 | 橙色 | 2500 |
| CP-40 | - | - | - | 26.1 | 29.1 | 34.0 | 19.1 | 25.4 | 橙色 | 2500 |
| CP-42 | - | - | - | 27.8 | 31.0 | 35.8 | 19.8 | 25.4 | 橙色 | 2500 |
| CP-44 | - | - | - | 29.2 | 32.7 | 39.4 | 19.1 | 25.4 | 橙色 | 2000 |
| CP-47 | - | - | - | 32.8 | 33.2 | 38.1 | 19.8 | 25.4 | 橙色 | 1800 |
| CP-49 | - | - | - | 33.3 | 37.2 | 41.2 | 19.1 | 25.4 | 橙色 | 1800 |
| CP-51 | - | - | - | 34.1 | 38.8 | 44.5 | 22.4 | 25.4 | 橙色 | 1500 |
| CP-55 | - | - | - | 36.9 | 40.7 | 44.5 | 19.1 | 25.4 | 橙色 | 1500 |
| CP-56 | - | - | - | 41.0 | 44.1 | 48.4 | 18.3 | 28.6 | 橙色 | 1000 |
| CP-57 | - | - | - | 45.9 | 49.2 | 54.9 | 25.4 | 31.8 | 橙色 | 1000 |
| 110039 | M52 | - | - | 48.2 | 52.7 | 57.1 | 25.4 | 26.4 | 红色 | 300 |
| 110040 | M58, M60 | - | 2” | 55.0 | 61.0 | 65.0 | 25.0 | 26.0 | 红色 | 400 |
| 110041 | M62 | - | - | 59.3 | 67.3 | 70.6 | 30.7 | 31.5 | 红色 | 150 |
| 110042 | - | - | - | 67.4 | 70.2 | 74.6 | 25.0 | 26.0 | 红色 | 300 |
