| SR1571 |

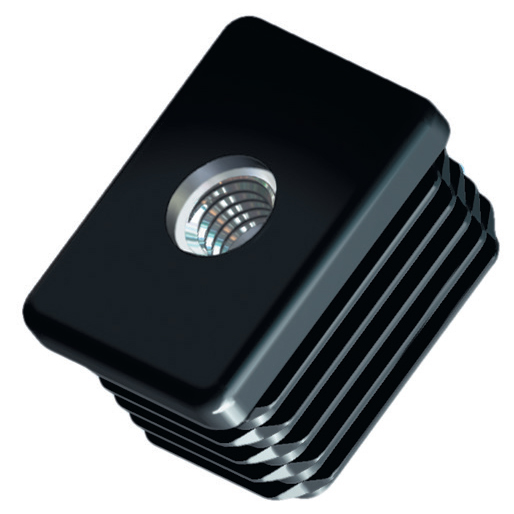

| 标准金属螺纹式管塞 |
| 带钢螺母的HDPE |
| .重型 |
| .尤其适合与调节脚，倾斜脚垫和脚轮配套使用 |
| .金属螺纹可以重复调节 |
|

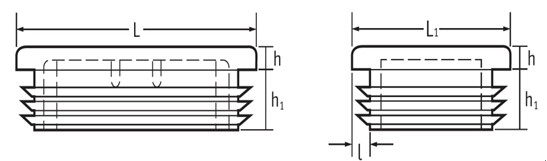

料号 |
L (mm) |
螺纹规格 |
l (mm) |
h (mm) |
h1 (mm) |
包装数量 |
|
498598 |
30 x 20 |
M8 |
1.0 - 2.0 |
5 |
20 |
1000 |
|
498599 |
30 x 20 |
M10 |
1.0 - 2.0 |
5 |
20 |
1000 |
|
498600 |
40 x 20 |
M8 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498601 |
40 x 20 |
M10 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498602 |
40 x 30 |
M8 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498603 |
40 x 30 |
M10 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498604 |
50 x 25 |
M8 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498605 |
50 x 25 |
M10 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498606 |
50 x 30 |
M8 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498607 |
50 x 30 |
M10 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498608 |
60 x 30 |
M8 |
1.0 - 2.0 |
5 |
20 |
500 |
|
498609 |
60 x 30 |
M10 |
1.0 - 2.0 |
5 |
20 |
500 |
