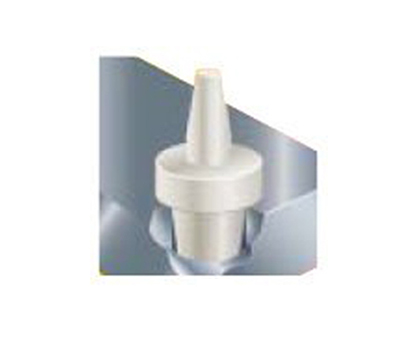

高温垫圈管塞 SR1065
天然硅橡胶
. 堵塞螺纹孔或普通孔
. 遮蔽孔周围区域表面
. 整体的垫圈和管塞组合体为一个独立元件
| 料号 | 配合螺纹 | D (mm) | d1 (mm) | d2 (mm) | d3 (mm) | d4(mm) | 每包数量 | ||
| 公制螺纹 | 统一螺纹 | 英制管螺纹 | |||||||
| 43397 | - | - | M4, M5 | 7.9 | 2.3 | 3.6 | 3 | 4.6 | 1000 |
| 43398 | 5/16" | 1/16" | M6, M8 | 9.5 | 3.3 | 5.1 | 4 | 7 | 1000 |
| 43399 | 3/8",1/2" | 1/8",1/4" | M10, M12 | 12.7 | 7.3 | 9.9 | 8.1 | 11.5 | 500 |
| 43400 | 1/4" | - | M3 | 6.4 | 1.7 | 4 | 3.7 | 6.4 | 1000 |
| 43401 | 5/16" | 1/16" | M7, M9 | 12.7 | 4 | 7 | 7.3 | 9.5 | 1000 |
| 499025 | - | - | - | 7.9 | 3 | 5 | 3.5 | 5.8 | 500 |
| 499026 | - | - | - | 9.5 | 1.8 | 3.3 | 2 | 3.8 | 500 |
| 499027 | - | - | - | 9.5 | 2.8 | 3.5 | 4.8 | 5 | 500 |
| 499028 | - | - | - | 9.5 | 2.5 | 4.6 | 4.8 | 4.6 | 500 |
| 499030 | - | - | - | 10 | 3.2 | 4.5 | 4.8 | 5.7 | 500 |
| 499031 | - | - | - | 12.7 | 3.8 | 6 | 4.8 | 6.3 | 500 |
| 499032 | - | - | - | 15.9 | 3.8 | 3.2 | 4.8 | 6.5 | 500 |
| 499033 | - | - | - | 17 | 3.6 | 7.1 | 4.3 | 8.7 | 500 |
| 499034 | - | - | - | 21 | 5 | 9.6 | 5.3 | 10.7 | 500 |
| 499035 | - | - | - | 24 | 5.5 | 10.9 | 6.4 | 12.7 | 500 |
