| SR1801 |
| 通用型护盖 |
| PP |
| .护盖和垫圈掩藏并保护外露的螺栓 |
| .所有垫圈均为白色 |
| .护盖所有可供的颜色如下所示 |
| .在零件编号好添加两位数字色吗以指定所需颜色 |
|

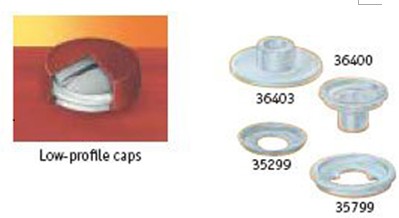

低矮型护盖 |
||||||
|
料号 |
类型 |
色码 |
护盖高度 |
外径 |
配合螺纹规格 |
包装数量 |
|
13000 |
61 盖子 |
00 |
4.2 |
10 |
3 (M3) |
2500 |
|
13006 |
61 盖子 |
06 |
4.2 |
10 |
3 (M3) |
2500 |
|
13010 |
61 盖子 |
10 |
4.2 |
10 |
3 (M3) |
2500 |
|
13029 |
61 盖子 |
29 |
4.2 |
10 |
3 (M3) |
2500 |
|
13070 |
61 盖子 |
70 |
4.2 |
10 |
3 (M3) |
2500 |
|
13071 |
61 盖子 |
71 |
4.2 |
10 |
3 (M3) |
2500 |
|
13072 |
61 盖子 |
72 |
4.2 |
10 |
3 (M3) |
2500 |
|
13073 |
61 盖子 |
73 |
4.2 |
10 |
3 (M3) |
2500 |
|
13074 |
61 盖子 |
74 |
4.2 |
10 |
3 (M3) |
2500 |
|
13080 |
61 盖子 |
80 |
4.2 |
10 |
3 (M3) |
2500 |
|
13081 |
61 盖子 |
81 |
4.2 |
10 |
3 (M3) |
2500 |
|
13082 |
61 盖子 |
82 |
4.2 |
10 |
3 (M3) |
2500 |
|
13099 |
61垫圈 |
白色 |
4.2 |
- |
3 (M3) |
2500 |
|
13200 |
63 盖子 |
00 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13206 |
63 盖子 |
06 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13210 |
63 盖子 |
10 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13229 |
63 盖子 |
29 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13266 |
63 盖子 |
66 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13270 |
63 盖子 |
70 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13271 |
63 盖子 |
71 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13272 |
63 盖子 |
72 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13273 |
63 盖子 |
73 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13274 |
63 盖子 |
74 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13280 |
63 盖子 |
80 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13281 |
63 盖子 |
81 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13282 |
63 盖子 |
82 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13283 |
63 盖子 |
83 |
4.5 |
13.2 |
Up to 8 (M4) |
2500 |
|
13299 |
83垫圈 |
白色 |
4.5 |
- |
Up to 8 (M4) |
2500 |
|
13400 |
64 盖子 |
00 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13406 |
64 盖子 |
06 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13410 |
64 盖子 |
10 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13429 |
64 盖子 |
29 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13466 |
64 盖子 |
66 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13470 |
64 盖子 |
70 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13471 |
64 盖子 |
71 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13472 |
64 盖子 |
72 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13473 |
64 盖子 |
73 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13474 |
64 盖子 |
74 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13480 |
64 盖子 |
80 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13481 |
64 盖子 |
81 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13482 |
64 盖子 |
82 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13483 |
64 盖子 |
83 |
4.8 |
16.2 |
Up to 12 (M5) |
2500 |
|
13499 |
84垫圈 |
白色 |
4.8 |
- |
Up to 12 (M5) |
2500 |
|
其它通用护盖部件 |
|||||
|
料号 |
描述 |
|
颜色 |
适配螺丝规格 |
垫圈外径 |
|
35799 |
配64护盖的垫圈塞 |
|
白色 |
Up to M6 |
14.7 |
|
36400 |
倒塞 |
|
本色 |
Up to 8g (M4) |
11.2 |
|
36403 |
配63护盖的垫圈塞 |
|
本色 |
Up to 8g (M4) |
16 |
