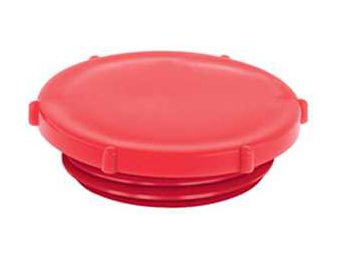

SR1009快速装配螺纹塞
红色LDPE
| 料号 | 配用螺纹尺寸 | D (mm) | h (mm) | H (mm) | 螺纹类型 | 包装数量 |
| 10101 | 1/4" x 19 | 20.5 | 6 | 9.2 | BSP/Gas | 5000 |
| 10102 | 3/8" x 19 | 24.1 | 6.2 | 9.6 | BSP/Gas | 5000 |
| 10103 | 1/2" x 14 | 30.4 | 6.1 | 9.2 | BSP/Gas | 3000 |
| 10105 | 5/8" x 14 | 30.2 | 6 | 9.2 | BSP/Gas | 2500 |
| 10106 | 3/4" x 14 | 34 | 6.1 | 9.1 | BSP/Gas | 2000 |
| 10107 | 1” x 11 | 40.2 | 5.7 | 9 | BSP/Gas | 1500 |
| 12613 | 3/4" x 14 | 33.2 | 6.8 | 12.5 | BSP/Gas | 2000 |
| 12614 | 1 1/4" x 11 | 49.5 | 12.9 | 18.7 | BSP/Gas | 800 |
| 12605 | M14 x 1.5 | 21.5 | 8 | 12.5 | 公制 | 5000 |
| 12606 | M16 x 1.5 | 23.6 | 8 | 12.5 | 公制 | 3000 |
| 18408 | M20 x 1.5 | 29.5 | 8 | 13 | 公制 | 3000 |
| 12597 | M30 x 2.0 | 39.9 | 9.8 | 14.6 | 公制 | 1500 |
| 12611 | M36 x 2.0 | 45.6 | 10.5 | 21.5 | 公制 | 1000 |
| 12602 | M45 x 2.0 | 57.8 | 12.7 | 18.5 | 公制 | 700 |
| 12578 | M42 x 2.0 | 64.7 | 15.5 | 21.2 | 公制 | 700 |
| 12612 | M52 x 2.0 | 65.9 | 15.4 | 21.3 | 公制 | 500 |
| 10108 | 7/16" x 20 | 18.5 | 5.9 | 9 | UNF/JIC | 5000 |
| 10109 | 1/2" x 20 | 20.6 | 5.9 | 9.1 | UNF/JIC | 5000 |
| 10110 | 9/16" x 18 | 21.4 | 5.9 | 9 | UNF/JIC | 5000 |
| 10119 | 3/4" x 16 | 26.7 | 5.9 | 9.3 | UNF/JIC | 3000 |
| 10120 | 7/8" x 14 | 29.8 | 6.2 | 9.2 | UNF/JIC | 2500 |
| 11000 | 1 1/16" x 12 | 33.9 | 5.9 | 9 | UNF/JIC | 2000 |
| 11001 | 1 5/16" x 12 | 40.3 | 6 | 9.4 | UNF/JIC | 1500 |
