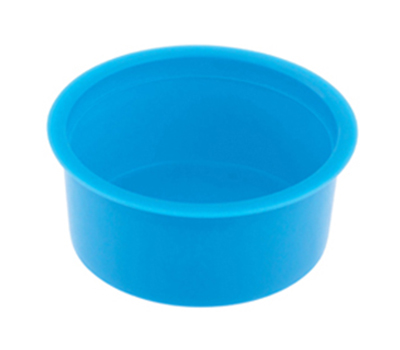

SR1111 锥形盖/塞

蓝色LDPE

. 可用作盖或塞

. 便于安装和移除

. 提供良好的防尘，防潮和防腐蚀的优质保护

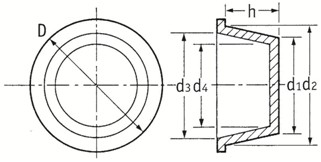

料号	d1 (mm)	d2 (mm)	d3 (mm)	d4 (mm)	D (mm)	h (mm)	包装数量
1	2.9	4.6	3.0	1.3	7.9	10.3	5000
1S	3.5	4.6	3.0	1.3	7.9	6.4	5000
2	4.5	6.1	4.5	2.8	9.5	9.5	5000
3	5.3	6.8	4.9	3.2	9.5	9.5	5000
5	6.1	7.7	6.1	4.5	11.9	9.5	5000
6	6.7	8.5	7.0	5.2	11.9	9.5	5000
7	7.6	9.3	7.7	5.9	13.5	9.5	5000
7-S	8.4	9.3	7.7	6.8	12.7	5.6	5000
8	8.4	10.1	8.4	7.0	14.3	9.5	5000
9	9.1	10.9	9.3	7.6	15.1	9.5	5000
10	9.9	11.7	10.1	8.3	15.9	9.5	5000
11	10.7	12.3	10.7	9.0	15.1	9.5	5000
12	11.4	13.0	11.4	9.8	15.9	10.3	5000
13-SP	12.1	13.8	12.2	10.4	18.3	7.9	5000
13	12.5	13.9	12.3	10.4	18.3	12.7	5000
13-W	12.1	13.9	12.3	10.4	22.2	12.7	7000
14	12.7	14.4	12.8	11.1	19.1	11.1	5000
16	13.5	15.8	14.1	11.9	19.1	11.8	7500
17	14.0	16.1	14.4	12.3	19.8	12.7	7500
18	15.0	17.2	15.4	13.2	22.2	13.5	5000
20	15.5	17.7	16.1	13.9	21.4	12.7	6000
21	16.3	18.5	16.9	14.6	22.2	12.7	5000
22	17.2	19.2	17.5	15.6	22.2	15.9	4000
23	17.5	19.9	18.4	15.9	23.8	15.9	4000
26	18.4	21.0	19.3	16.8	25.4	12.7	4000
26-L	18.4	21.0	19.3	16.8	24.6	15.0	8000
27	19.1	21.5	19.7	17.4	26.2	15.9	7000
28	20.4	23.1	21.5	18.4	27.8	19.1	5000
29	20.8	23.7	21.6	19.2	28.6	14.6	5500
30	21.7	24.7	23.0	19.5	28.6	19.1	4500
31	22.1	24.8	23.4	20.4	28.6	15.9	5000
35	22.7	26.4	24.8	21.1	29.4	19.1	4500
38	24.9	26.5	25.0	22.3	31.8	12.7	2500
40	24.5	27.7	26.0	22.9	31.8	19.1	3500
41	25.5	29.1	27.4	23.8	33.3	19.1	3500
42	28.2	31.2	30.0	26.4	38.5	19.1	2500
44	30.0	32.6	30.9	28.1	36.5	19.1	2500
45	31.1	34.3	32.9	29.5	38.1	19.1	2500
46	31.4	34.3	32.9	29.0	36.5	19.1	2500
47	32.8	34.6	33.0	31.2	38.1	19.1	2000
48	32.8	37.0	35.3	31.2	41.3	25.4	1500
49	33.3	37.3	35.6	31.7	41.3	19.1	2000
51	34.1	38.5	36.8	32.6	44.5	23.8	1500
K-5	38.7	38.7	37.7	36.7	44.5	12.7	2500
53	36.8	40.6	39.0	35.2	44.5	19.1	2000
54	38.6	40.7	39.0	37.0	45.2	19.1	1700
55	39.6	42.5	41.2	38.0	47.6	19.1	1500
56	40.8	44.5	42.8	39.8	49.2	19.1	1500
59	45.7	46.4	44.7	44.1	51.6	12.7	2000
57	44.1	47.5	46.2	42.6	51.6	19.1	1200
58	45.9	49.7	48.1	44.3	54.0	25.4	900
60	46.9	51.3	49.2	45.3	54.0	25.4	1000
62	48.3	53.0	51.2	46.7	57.2	25.4	850
65	51.2	54.5	52.9	49.7	58.7	19.1	1000
63	50.3	55.1	53.6	48.6	57.2	25.4	800
66	52.4	57.2	55.3	50.8	61.9	26.2	700
68	56.5	57.9	56.4	54.6	63.5	12.7	1200
67	54.8	59.8	58.1	52.9	66.7	25.4	600
70	54.1	61.6	60.2	51.9	63.5	25.4	700
71	58.4	63.1	61.0	56.8	66.7	25.4	600
73	60.8	66.2	64.5	59.2	66.7	25.4	600
74	61.7	67.2	65.5	61.5	69.9	19.1	700
75	58.7	67.3	65.7	57.0	69.9	25.4	750
77	65.0	68.3	66.7	63.5	73.0	19.1	700
76	62.4	69.9	68.2	60.8	73.0	25.4	600
78	67.2	71.3	69.2	65.5	76.2	12.7	1000
82	72.4	75.7	74.2	70.7	82.6	19.1	500
81	69.1	76.2	74.9	66.7	79.4	25.4	500
83	76.1	80.2	78.7	74.0	85.7	12.7	750
85	75.7	82.4	80.4	73.7	85.7	25.4	400
86	78.5	85.5	83.4	76.3	88.9	25.4	400
87	84.3	87.6	85.6	82.3	92.1	12.7	500
88	82.2	90.8	88.8	80.2	100.0	25.4	300
89	88.0	91.4	89.2	86.5	98.4	22.4	350
K-851	90.2	95.3	93.4	88.3	101.6	25.4	250
90	93.4	96.5	94.7	91.6	101.6	19.1	300
91	96.5	99.7	97.7	94.4	104.8	17.5	300
92	99.5	103.4	101.1	96.8	111.1	19.8	250
93	102.4	106.4	104.4	100.3	114.3	19.1	250
94	107.1	112.9	111.3	105.0	123.8	25.4	200
95	110.9	117.0	114.3	109.0	127.0	25.4	200
1100	124.7	129.3	127.3	122.7	139.7	26.2	250
1110	126.8	132.1	129.5	125.0	143.0	26.2	250
101	138.9	142.8	140.7	136.9	155.7	25.4	100
103	143.3	149.2	147.2	140.7	158.8	25.4	100
39665	141.0	150.0	148.0	138.0	164.1	25.4	140
FPL-6	152.0	153.4	-	-	167.9	32.5	150
104	152.7	157.0	154.9	150.4	168.2	25.4	90
106	162.6	166.6	164.6	160.8	176.3	22.9	100
108	167.9	170.4	168.4	165.9	182.6	38.9	100
K-436	174.8	178.6	176.5	172.7	194.8	13.5	300
110	179.1	180.9	178.8	177.0	193.8	26.2	100
112	186.4	194.3	192.0	184.4	201.7	26.2	100
114	194.6	199.1	197.1	192.5	206.3	26.2	100
118	207.2	212.1	209.6	204.5	222.3	35.7	50
120	213.4	218.4	215.9	210.8	228.6	35.7	50
124	220.2	221.7	219.1	217.2	231.9	38.9	50
126	230.1	237.7	234.7	225.8	250.4	45.2	50
130	274.1	281.9	277.1	268.0	294.6	45.2	40
132	282.2	291.1	286.3	273.8	303.8	51.6	40
133	303.0	319.0	313.7	297.2	331.5	51.6	30
134	324.9	338.8	328.0	318.3	346.5	51.6	30
136	336.6	345.4	340.4	330.2	358.1	51.6	30
