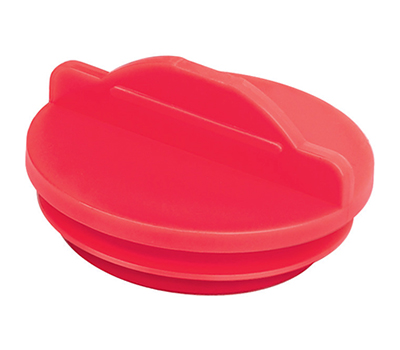

扣合塞 SR1008
红色LDPE
. 压入装配位置后只需旋转一圈便可达到紧配合
| 料号 | 配用螺纹尺寸公制 | 配用螺纹尺寸 BSP/GAS | 配用螺纹尺寸 UNF/JIC | d (mm) | D (mm) | h1 (mm) | h2 (mm) | 包装数量 |
| 10530 | 0 | 1⁄8" | 7⁄16" | 9.8 | - | 6.0 | 4.0 | 12000 |
| 12363 | M12, M13, M14 | 1⁄4" | 1⁄2" | 13.1 | 15.8 | 12.0 | 5.0 | 10000 |
| 12364 | M16 | 3⁄8" | 5⁄8" | 16.5 | 19.5 | 14.0 | 5.0 | 10000 |
| 10314 | M18 | - | 3⁄4" | 18.3 | 21.5 | 11.5 | 7.0 | 7000 |
| 12365 | M20 | 1⁄2" | - | 21.3 | 22.7 | 12.0 | 7.0 | 5000 |
| 12366 | M22 | 5⁄8" | 7⁄8" | 22.4 | 25.8 | 12.0 | 7.0 | 5000 |
| 12621 | M24 | - | - | 23.5 | 28.2 | 12.0 | 7.0 | 3000 |
| 12367 | M25, M26 | 3⁄4" | 1 1⁄16" | 25.5 | 29.9 | 12.0 | 7.0 | 2000 |
| 12368 | M28 | 7⁄8" | 1 1⁄8" | 27.9 | 32.7 | 12.0 | 7.0 | 3000 |
| 12369 | M32 | 1” | 1 5⁄16" | 32.0 | 35.6 | 12.0 | 7.0 | 2500 |
| 12622 | M36 | 1 1⁄8" | 1 1⁄2", 1 3⁄8" | 35.7 | 39.7 | 12.0 | 7.0 | 2000 |
| 12598 | M40, M42 | 1 1⁄4" | 1 5⁄8" | 41.5 | 45.4 | 7.0 | 7.0 | 2000 |
