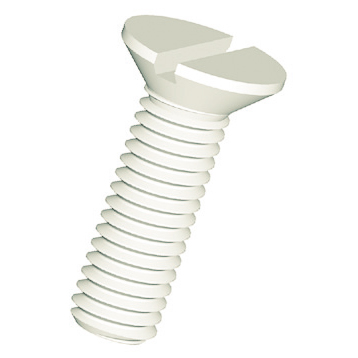

SR1967 |
||
开槽沉头螺钉 |
||
本色尼龙6.6 |
||
.参照ISO2009,NF E 25-123, DIN 963的尺寸公差 |
||
|
料号 |
d (mm) |
L (mm) |
D (mm) |
l (mm) |
d1 (mm) |
l1 (mm) |
包装数量 |
|
0100040000VR |
M2.5 x 0.45 |
6.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100050000VR |
M2.5 x 0.45 |
10.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100060000VR |
M3 x 0.5 |
4.0 |
6.0 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100070000VR |
M3 x 0.5 |
6.0 |
6.0 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100080000VR |
M3 x 0.5 |
8.0 |
6.0 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100090000VR |
M3 x 0.5 |
10.0 |
6.0 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100100000VR |
M3 x 0.5 |
12.0 |
6.3 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100120000VR |
M3 x 0.5 |
16.0 |
6.0 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100130000VR |
M3 x 0.5 |
20.0 |
6.0 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100140000VR |
M3 x 0.5 |
25.0 |
6.3 |
1.7 |
0.8 |
0.9 |
1000 |
|
0100160000VR |
M4 x 0.7 |
6.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100170000VR |
M4 x 0.7 |
8.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100180000VR |
M4 x 0.7 |
10.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100190000VR |
M4 x 0.7 |
12.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100210000VR |
M4 x 0.7 |
16.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100220000VR |
M4 x 0.7 |
20.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100230000VR |
M4 x 0.7 |
25.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100240000VR |
M4 x 0.7 |
30.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100250000VR |
M4 x 0.7 |
40.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100280000VR |
M5 x 0.8 |
10.0 |
10.0 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100290000VR |
M5 x 0.8 |
12.0 |
9.0 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100310000VR |
M5 x 0.8 |
16.0 |
10.0 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100320000VR |
M5 x 0.8 |
18.0 |
10.4 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100330000VR |
M5 x 0.8 |
20.0 |
10.0 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100340000VR |
M5 x 0.8 |
25.0 |
10.0 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100350000VR |
M5 x 0.8 |
30.0 |
9.2 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100360000VR |
M5 x 0.8 |
40.0 |
9.2 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100370000VR |
M5 x 0.8 |
35.0 |
10.4 |
2.7 |
1.2 |
1.4 |
1000 |
|
0100380000VR |
M2 x 0.4 |
5.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100390000VR |
M2 x 0.4 |
6.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100400000VR |
M2 x 0.4 |
10.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100410000VR |
M6 x 1.0 |
8.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100420000VR |
M6 x 1.0 |
10.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100430000VR |
M6 x 1.0 |
12.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100450000VR |
M6 x 1.0 |
16.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100460000VR |
M6 x 1.0 |
20.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100470000VR |
M2 x 0.4 |
4.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100480000VR |
M6 x 1.0 |
25.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100500000VR |
M6 x 1.0 |
30.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100520000VR |
M6 x 1.0 |
40.0 |
11.0 |
3.3 |
1.6 |
1.6 |
1000 |
|
0100530000VR |
M6 x 1.0 |
50.0 |
11.0 |
3.3 |
1.6 |
1.6 |
500 |
|
0100540000VR |
M6 x 1.0 |
60.0 |
11.0 |
3.3 |
1.6 |
1.6 |
500 |
|
0100550000VR |
M2 x 0.4 |
12.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100560000VR |
M2 x 0.4 |
16.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100570000VR |
M2 x 0.4 |
25.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100580000VR |
M2.5 x 0.45 |
4.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100590000VR |
M2.5 x 0.45 |
5.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100600000VR |
M2.5 x 0.45 |
8.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100620000VR |
M2.5 x 0.45 |
16.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100630000VR |
M2.5 x 0.45 |
20.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100640000VR |
M2.5 x 0.45 |
25.0 |
4.7 |
1.5 |
0.7 |
0.6 |
1000 |
|
0100650000VR |
M3 x 0.5 |
30.0 |
5.6 |
1.7 |
0.9 |
0.7 |
1000 |
|
0100660000VR |
M3 x 0.5 |
40.0 |
5.6 |
1.7 |
0.9 |
0.7 |
1000 |
|
0100680000VR |
M8 x 1.25 |
16.0 |
14.5 |
4.7 |
2.0 |
2.3 |
1000 |
|
0100690000VR |
M8 x 1.25 |
20.0 |
14.5 |
4.7 |
2.0 |
2.3 |
1000 |
|
0100700000VR |
M8 x 1.25 |
25.0 |
14.5 |
4.7 |
2.0 |
2.3 |
1000 |
|
0100710000VR |
M8 x 1.25 |
30.0 |
14.5 |
4.7 |
2.0 |
2.3 |
1000 |
|
0100730000VR |
M8 x 1.25 |
40.0 |
14.5 |
4.7 |
2.0 |
2.3 |
1000 |
|
0100740000VR |
M8 x 1.25 |
50.0 |
14.5 |
4.7 |
2.0 |
2.3 |
500 |
|
0100750000VR |
M2 x 0.4 |
8.0 |
4.0 |
1.2 |
0.6 |
0.5 |
1000 |
|
0100760000VR |
M8 x 1.25 |
60.0 |
14.5 |
4.7 |
2.0 |
2.3 |
500 |
|
0100770000VR |
M10 x 1.5 |
40.0 |
17.5 |
5.0 |
2.6 |
2.3 |
500 |
|
0100780000VR |
M10 x 1.5 |
35.0 |
18.0 |
5.0 |
2.6 |
2.3 |
500 |
|
0100790000VR |
M4 x 0.7 |
35.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
|
0100800000VR |
M5 x 0.8 |
6.0 |
10.3 |
2.5 |
1.4 |
1.2 |
1000 |
|
0100810000VR |
M5 x 0.8 |
8.0 |
10.3 |
2.5 |
1.4 |
1.2 |
1000 |
|
0100820000VR |
M10 x 1.5 |
20.0 |
18.0 |
5.0 |
2.6 |
2.3 |
500 |
|
0100830000VR |
M10 x 1.5 |
25.0 |
18.0 |
5.0 |
2.6 |
2.3 |
500 |
|
0100840000VR |
M10 x 1.5 |
30.0 |
18.0 |
5.0 |
2.6 |
2.3 |
500 |
|
0100860000VR |
M10 x 1.5 |
60.0 |
18.0 |
5.0 |
2.6 |
2.3 |
250 |
|
0100870000VR |
M5 x 0.8 |
60.0 |
9.2 |
2.7 |
1.2 |
1.4 |
500 |
|
0100900000VR |
M4 x 0.7 |
18.0 |
7.8 |
2.7 |
1.2 |
1.3 |
1000 |
