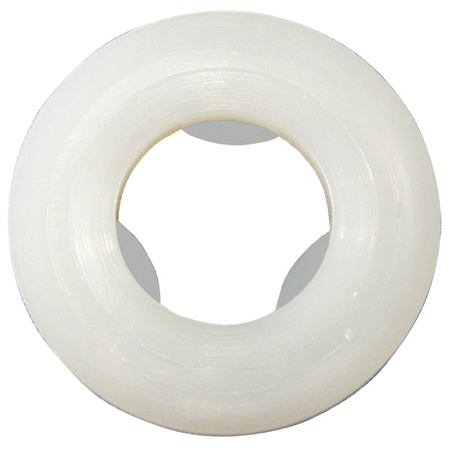

.将螺丝和螺栓固定在需要装配的位置
|
料号
|
尺寸
|

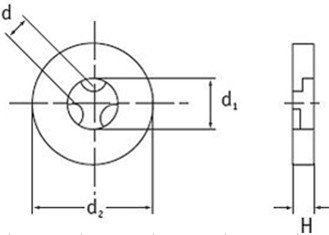

d (mm)
|
d1 (mm)
|
d2 (mm)
|
H (mm)
|
|
1040040900VR
|
M3
|
2.5
|
3.2
|
8.0
|
0.8
|
|
1040160900VR
|
M3
|
2.5
|
3.2
|
9.0
|
0.8
|
|
1040170900VR
|
M3
|
2.5
|
3.2
|
10.0
|
0.8
|
|
1040180900VR
|
M3
|
2.5
|
3.2
|
12.8
|
0.8
|
|
1040190900VR
|
M3.5
|
2.9
|
3.7
|
7.0
|
0.5
|
|
497517
|
M3.5
|
2.9
|
3.7
|
8.0
|
0.5
|
|
1040070900VR
|
M4
|
3.3
|
4.3
|
10.0
|
0.8
|
|
1040220900VR
|
M4
|
3.3
|
4.3
|
12.8
|
0.8
|
|
497516
|
M4
|
3.3
|
4.3
|
8.0
|
0.8
|
|
497518
|
M4
|
3.3
|
4.3
|
9.0
|
0.8
|
|
1040080900VR
|
M5
|
4.2
|
5.3
|
12.0
|
1.0
|
|
1040320900VR
|
M5
|
4.2
|
5.3
|
20.0
|
1.0
|
|
497519
|
M5
|
4.2
|
5.3
|
10.0
|
1.0
|
|
1040350900VR
|
M6
|
4.6
|
6.2
|
9.5
|
1.0
|
|
1040060900VR
|
M6
|
5.2
|
6.4
|
12.0
|
1.6
|
|
1040090900VR
|
M6
|
5.2
|
6.4
|
14.0
|
1.2
|
|
1040240900VR
|
M6
|
5.2
|
6.4
|
12.5
|
1.6
|
|
1040250900VR
|
M6
|
5.2
|
6.4
|
15.0
|
1.6
|
|
1040260900VR
|
M6
|
5.2
|
6.4
|
16.0
|
1.6
|
|
1040270900VR
|
M6
|
5.2
|
6.4
|
17.0
|
1.6
|
|
1040340900VR
|
M6
|
5.2
|
6.4
|
12.0
|
1.2
|
|
1040100900VR
|
M8
|
6.6
|
8.4
|
18.0
|
1.5
|
|
1040360900VR
|
M8
|
6.6
|
8.4
|
12.0
|
1.6
|
|
1040110900VR
|
M10
|
8.2
|
10.5
|
22.0
|
2.0
|
|
1040280900VR
|
M10
|
8.2
|
10.5
|
20.0
|
2.0
|
|
1040290900VR
|
M10
|
8.2
|
10.5
|
24.0
|
2.0
|
|
1040120900VR
|
M12
|
10.7
|
13.0
|
27.0
|
2.5
|
|
1040140900VR
|
M12
|
10.7
|
13.0
|
24.0
|
2.5
|
|
1040300900VR
|
M12
|
10.7
|
13.0
|
30.0
|
2.5
|
|
1040130900VR
|
M16
|
13.6
|
17.0
|
32.0
|
3.0
|
|
