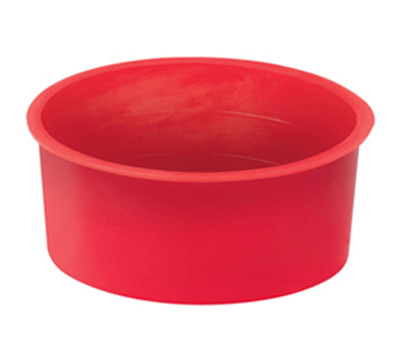

SR1000 锥形盖/塞
红色LDPE
. 可以作为盖子和塞子使用
. 简易的装配和拆除
. 140多种尺寸
. 提供在存储和运输中不受损伤，伤尘，防潮和防腐蚀的保护

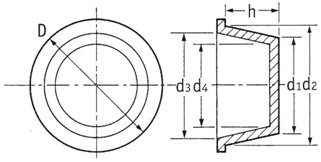

| 料号 | d1(mm) | d2(mm) | d3(mm) | d4(mm) | D(mm) | h(mm) | 配用螺纹尺寸（盖） | 配用螺纹尺寸（塞） | 包装数量 |
| 10836 | 2.9 | 4.6 | 3.0 | 1.3 | 7.9 | 9.5 | - | - | 10000 |
| 10991 | 4.4 | 6.1 | 4.5 | 2.8 | 9.5 | 9.5 | M4 | 1/4" UNF | 10000 |
| 12419 | 5.6 | 7.0 | 5.4 | 4.0 | 10.5 | 8.4 | - | - | 10000 |
| 10727 | 6.2 | 7.6 | 5.9 | 5.0 | 11.1 | 9.5 | M6 | M8, 5/16" UNF | 10000 |
| 50222 | 4.7 | 8.5 | 5.7 | 2.5 | 11.7 | 22.5 | - | - | 10000 |
| 10549 | 7.7 | 9.1 | 7.7 | 6.3 | 12.7 | 9.5 | - | 3/8" UNF | 5000 |
| 12482 | 7.7 | 9.3 | 7.0 | 5.5 | 12.7 | 8.0 | 1/4" UNF | - | 10000 |
| 10289 | 8.4 | 10.0 | 8.2 | 6.9 | 13.5 | 9.5 | M8 | M10 | 10000 |
| 12562 | 8.6 | 10.3 | 8.2 | 7.0 | 13.7 | 9.8 | - | - | 10000 |
| 12483 | 9.0 | 10.7 | 8.8 | 7.5 | 13.9 | 11.5 | - | - | 10000 |
| 10325 | 9.4 | 10.8 | 9.3 | 7.7 | 14.0 | 8.5 | - | - | 10000 |
| 10750 | 10.0 | 11.8 | 10.0 | 8.5 | 15.0 | 9.5 | 3/8" UNF | M12 | 10000 |
| 12420 | 10.6 | 12.2 | 10.0 | 8.6 | 15.6 | 9.8 | - | - | 10000 |
| 10114 | 10.9 | 12.3 | 10.7 | 9.1 | 15.9 | 9.3 | 1/8" BSP | 1/4" BSP, 1/2" UNF | 10000 |
| 12422 | 11.3 | 12.9 | 10.9 | 9.4 | 16.3 | 8.5 | - | - | 10000 |
| 10174 | 11.5 | 13.0 | 11.5 | 10.0 | 16.7 | 9.5 | - | M14 x 1.5 | 10000 |
| 10421 | 11.3 | 13.2 | 11.6 | 9.8 | 17.0 | 11.0 | - | - | 10000 |
| 10237 | 12.1 | 13.9 | 12.3 | 10.6 | 17.5 | 11.0 | M12 | 9/16" UNF | 5000 |
| 12421 | 11.2 | 14.0 | 12.1 | 9.2 | 17.5 | 18.5 | - | - | 5000 |
| 12563 | 12.5 | 14.0 | 12.0 | 10.5 | 17.5 | 8.9 | 7/16" UNF | - | 5000 |
| 12901 | 12.0 | 14.8 | 12.0 | 10.5 | 17.5 | 11.0 | - | 5000 | |
| 15137 | 12.8 | 15.1 | 13.2 | 10.7 | 18.5 | 23.1 | - | - | 4000 |
| 10438 | 13.6 | 15.3 | 13.7 | 12.1 | 19.0 | 11.2 | 1/4" BSP, 1/2" UNF | M16 | 5000 |
| 10342 | 14.2 | 16.0 | 14.4 | 12.7 | 19.0 | 12.1 | M14 | 3/8" BSP | 5000 |
| 12481 | 14.9 | 16.4 | 14.5 | 13.5 | 21.0 | 11.5 | - | - | 5000 |
| 10424 | 14.7 | 17.0 | 15.4 | 13.2 | 20.6 | 12.7 | - | M18 x 1.5 | 5000 |
| 12423 | 15.5 | 17.1 | 15.0 | 13.4 | 20.6 | 8.5 | - | - | 5000 |
| 12564 | 16.1 | 17.6 | 15.5 | 14.5 | 21.0 | 8.5 | - | - | 5000 |
| 11139 | 16.4 | 18.3 | 16.9 | 14.3 | 22.2 | 12.3 | M16, 5/8" UNF | 3/4" UNF | 5000 |
| 12196 | 16.6 | 18.5 | 16.5 | 14.5 | 21.9 | 13.0 | - | - | 6000 |
| 110197 | 17.1 | 19.4 | 17.8 | 15.5 | 22.0 | 13.0 | 3/8"BSP | M20 x 1.5 | 6500 |
| 11088 | 17.7 | 19.6 | 17.3 | 15.2 | 22.2 | 12.7 | 3/8" BSP | M20 | 5000 |
| 10394 | 17.8 | 20.0 | 18.3 | 16.4 | 23.8 | 13.4 | M18 | 1/2" BSP | 5000 |
| 110198 | 17.5 | 20.1 | 18.5 | 15.9 | 24.0 | 14.5 | M18 x 1.5, M18 x 2 | 1/2" BSP | 5000 |
| 12197 | 17.2 | 20.2 | 18.0 | 15.5 | 24.2 | 18.0 | - | - | 4000 |
| 10208 | 18.5 | 20.9 | 19.3 | 17.1 | 24.6 | 14.3 | 3/4" UNF | M22 x 1.5 | 5000 |
| 12424 | 18.3 | 21.4 | 19.3 | 16.4 | 25.4 | 17.5 | - | - | 4000 |
| 10728 | 19.0 | 21.5 | 19.7 | 17.6 | 25.8 | 14.3 | - | M22 x 1.5 , 7/8" UNF | 4000 |
| 12925 | 19.4 | 22.5 | 21.3 | 18.0 | 26.5 | 19.0 | - | - | 3000 |
| 12425 | 20.5 | 23.2 | 21.2 | 18.5 | 27.2 | 17.5 | - | - | 3000 |
| 52071 | 21.2 | 23.2 | 21.7 | 19.3 | 27.3 | 12.3 | - | M24 | 4000 |
| 10676 | 21.3 | 23.2 | 21.5 | 19.2 | 27.0 | 15.9 | M20 x 2.5, 1/2" BSP | 5/8" BSP | 3000 |
| 110200 | 22.0 | 24.8 | 23.2 | 20.4 | 29.0 | 17.0 | M22 x 1.5 | - | 3000 |
| 12426 | 22.7 | 24.9 | 22.7 | 20.8 | 27.0 | 12.0 | - | - | 3000 |
| 10376 | 22.0 | 25.0 | 23.0 | 20.5 | 28.5 | 15.9 | M22 | 1" UNF | 3000 |
| 12565 | 22.5 | 25.5 | 23.3 | 20.0 | 28.9 | 17.8 | 7/8" UNF | - | 2500 |
| 10136 | 23.4 | 26.4 | 24.4 | 21.4 | 29.3 | 17.5 | M24 | 3/4" BSP, M27, M26 | 2500 |
| 12427 | 24.0 | 26.9 | 25.0 | 21.9 | 31.0 | 18.0 | - | - | 2000 |
| 10732 | 24.7 | 27.7 | 26.1 | 23.2 | 32.0 | 19.0 | M25, 1" UNF | M28, M30, 11/8" UNF | 2000 |
| 110201 | 25.2 | 29.2 | 27.7 | 23.7 | 33.0 | 19.0 | - | 1500 | |
| 12567 | 24.6 | 29.5 | 27.5 | 22.5 | 34.0 | 27.5 | - | - | 1500 |
| 12999 | 26.6 | 29.7 | 28.3 | 24.6 | 31.6 | 26.3 | 3/4" BSP | 7/8" BSP | 1500 |
| 10250 | 28.0 | 30.9 | 29.0 | 26.5 | 35.3 | 19.0 | M27, M28 | M30 x 1.5 | 2000 |
| 11173 | 29.2 | 31.2 | 30.3 | 28.0 | 34.7 | 12.7 | M22 x 2 | M33,1" BSP | 2000 |
| 10272 | 30.0 | 32.6 | 30.7 | 27.5 | 36.7 | 15.2 | M30 | M33,1" BSP | 2000 |
| 12428 | 30.5 | 33.3 | 31.1 | 28.4 | 37.0 | 14.5 | 7/8" BSP | 15/16" x 12 UNF | 2000 |
| 12568 | 31.1 | 34.3 | 32.0 | 29.3 | 38.1 | 17.5 | - | 13/8" UNF, M36 | 1500 |
| 10154 | 31.1 | 34.4 | 32.8 | 29.8 | 38.1 | 19.0 | M33, M32, 1 1/4" UNF | M36 | 1500 |
| 11167 | 33.3 | 34.4 | 32.8 | 31.4 | 38.1 | 9.5 | - | - | 2500 |
| 12569 | 31.6 | 36.3 | 34.0 | 29.8 | 40.2 | 24.1 | 1 5/16" BSP | 1 5/16" BSP | 1000 |
| 12198 | 34.9 | 36.4 | 35.2 | 33.1 | 42.7 | 8.2 | - | - | 2500 |
| 10181 | 33.3 | 37.2 | 35.6 | 31.7 | 41.6 | 22.2 | 1" BSP | M38, 11/8"BSP | 1000 |
| 10838 | 33.9 | 37.3 | 35.8 | 32.0 | 42.2 | 12.3 | 13/8" UNF | 1 1/8" BSP | 2000 |
| 12480 | 33.9 | 38.3 | 36.5 | 31.9 | 42.3 | 24.5 | - | - | 1000 |
| 15138 | 36.3 | 38.3 | 37.0 | 34.6 | 42.3 | 12.0 | - | - | 1500 |
| 12570 | 35.9 | 40.2 | 37.5 | 33.2 | 44.1 | 24.5 | - | - | 1000 |
| 10491 | 36.9 | 40.6 | 39.0 | 35.0 | 44.0 | 22.5 | M38 | 11/4"BSP | 1000 |
| 11115 | 38.6 | 40.6 | 39.0 | 37.1 | 44.5 | 12.7 | 11/2" UNF | - | 1500 |
| 10485 | 39.6 | 42.7 | 41.1 | 38.2 | 47.6 | 18.5 | M39, M40 | M42 | 1000 |
| 12429 | 40.8 | 44.7 | 41.8 | 37.7 | 49.0 | 24.0 | - | - | 500 |
| 10252 | 41.4 | 44.8 | 43.0 | 39.7 | 49.2 | 19.0 | 11/4" BSP | M45 x 2 | 1000 |
| 11172 | 42.5 | 44.8 | 43.0 | 40.7 | 50.7 | 12.6 | - | - | 1000 |
| 10439 | 45.9 | 46.3 | 45.0 | 44.3 | 50.8 | 9.5 | - | M48 | 1500 |
| 10812 | 44.1 | 46.7 | 45.7 | 42.8 | 49.8 | 18.4 | - | - | 800 |
| 110204 | 44.4 | 47.7 | 46.1 | 42.8 | 51.0 | 19.0 | M45 x 1.5/2/3 | M48 x 2, 17/8" JIC/UNF, 11/2" BSP | 1500 |
| 15139 | 43.4 | 48.5 | 47.0 | 42.0 | 53.3 | 24.5 | - | - | 600 |
| 10168 | 45.2 | 49.0 | 47.0 | 43.7 | 53.4 | 24.5 | 13/8" BSP | M48, 11/2" BSP | 600 |
| 15136 | 46.0 | 50.0 | 48.0 | 44.3 | 54.0 | 24.8 | - | - | 500 |
| 11131 | 47.5 | 50.3 | 49.0 | 45.2 | 54.0 | 25.0 | - | - | 500 |
| 10086 | 48.6 | 51.2 | 48.9 | 46.7 | 55.5 | 18.7 | M48, 1 1/2" BSP | M52 | 500 |
| 12430 | 47.2 | 51.9 | 48.7 | 44.5 | 55.8 | 24.0 | - | - | 500 |
| 10820 | 48.0 | 52.7 | 50.7 | 46.3 | 57.1 | 25.4 | - | - | 500 |
| 12746 | 49.8 | 54.0 | 52.0 | 47.5 | 58.0 | 24.3 | - | - | 500 |
| 10935 | 51.5 | 54.1 | 52.0 | 49.6 | 58.3 | 18.5 | - | - | 500 |
| 10624 | 51.1 | 54.4 | 52.0 | 47.7 | 57.0 | 25.0 | - | - | 500 |
| 11047 | 53.5 | 57.0 | 55.3 | 51.2 | 62.4 | 25.1 | 13/4" BSP | M56, M55 | 400 |
| 11169 | 57.5 | 57.6 | 56.1 | 55.2 | 63.6 | 12.8 | - | - | 700 |
| 12431 | 54.0 | 58.4 | 55.0 | 50.8 | 62.4 | 24.5 | - | - | 400 |
| 11168 | 55.4 | 58.8 | 57.2 | 53.7 | 65.0 | 25.1 | M58 | 2" BSP | 400 |
| 10616 | 55.0 | 61.0 | 59.0 | 52.2 | 65.0 | 25.0 | - | - | 400 |
| 10249 | 59.6 | 62.6 | 61.0 | 57.0 | 66.7 | 24.6 | 2" BSP | - | 300 |
| 11075 | 62.0 | 66.4 | 64.3 | 59.0 | 71.0 | 28.0 | - | - | 300 |
| 11100 | 59.3 | 67.3 | 64.1 | 56.7 | 70.3 | 31.7 | - | - | 300 |
| 10399 | 64.5 | 67.3 | 65.6 | 62.1 | 70.6 | 15.8 | - | - | 400 |
| 10292 | 63.3 | 69.8 | 67.8 | 61.5 | 73.0 | 25.4 | - | - | 400 |
| 11064 | 68.1 | 70.9 | 69.3 | 66.3 | 74.6 | 19.0 | - | - | 400 |
| 10302 | 70.0 | 75.8 | 74.0 | 68.1 | 79.4 | 25.4 | - | M76, M75, 21/2" BSP | 300 |
| 10550 | 74.0 | 76.8 | 73.4 | 70.0 | 80.0 | 24.4 | - | - | 600 |
| 10617 | 74.0 | 77.0 | 73.9 | 71.5 | 82.5 | 18.7 | - | - | 300 |
| 11170 | 77.1 | 80.7 | 78.2 | 74.8 | 85.7 | 19.0 | 21/2" BSP | - | 300 |
| 11023 | 76.8 | 82.2 | 80.8 | 74.8 | 85.7 | 25.4 | - | - | 500 |
| 11037 | 80.0 | 86.1 | 82.0 | 77.5 | 89.8 | 25.1 | - | - | 500 |
| 11171 | 85.3 | 88.0 | 85.5 | 82.9 | 92.0 | 19.0 | - | - | 250 |
| 10353 | 84.2 | 90.8 | 88.3 | 82.7 | 94.5 | 28.0 | 3" BSP | - | 500 |
| 10304 | 88.1 | 93.3 | 89.9 | 85.1 | 96.5 | 28.6 | - | - | 300 |
| 12572 | 87.5 | 93.6 | 90.5 | 84.3 | 96.7 | 34.3 | - | - | 250 |
| 10253 | 92.1 | 97.0 | 94.0 | 88.3 | 100.0 | 32.0 | - | - | 300 |
| 10697 | 93.5 | 100.3 | 97.8 | 89.9 | 107.5 | 26.5 | - | - | 400 |
| 12573 | 94.5 | 100.6 | 97.0 | 91.0 | 103.6 | 34.5 | - | - | 100 |
| 462569 | 96.5 | 102.0 | 101.0 | 94.0 | 110.0 | 31.0 | - | - | 200 |
| 12199 | 98.0 | 102.0 | 98.5 | 94.8 | 107.2 | 24.7 | - | - | 400 |
| 10551 | 98.2 | 103.3 | 99.0 | 95.0 | 106.0 | 28.8 | - | - | 300 |
| 110785 | 101.0 | 107.0 | 103.0 | 98.0 | 109.0 | 28.6 | - | - | 300 |
| 10688 | 101.9 | 107.5 | 103.0 | 98.0 | 109.0 | 28.6 | - | - | 300 |
| 10771 | 106.7 | 111.7 | 107.4 | 107.4 | 113.3 | 28.6 | - | - | 250 |
| 462570 | 109.0 | 113.0 | 111.0 | 106.0 | 123.0 | 27.0 | - | - | 175 |
| 10455 | 108.0 | 114.1 | 111.6 | 106.4 | 118.5 | 35.2 | - | - | 250 |
| 10133 | 112.1 | 114.3 | 109.8 | 107.5 | 116.8 | 28.6 | - | - | 250 |
| 10837 | 110.0 | 115.0 | 109.0 | 105.0 | 118.5 | 28.0 | - | - | 250 |
| 12574 | 111.5 | 117.6 | 115.0 | 107.5 | 122.0 | 35.0 | - | - | 250 |
| 10355 | 124.0 | 128.0 | 125.0 | 121.0 | 134.0 | 23.0 | - | - | 150 |
| 12575 | 129.0 | 135.1 | 132.0 | 124.0 | 139.5 | 36.5 | - | - | 150 |
| 462571 | 133.0 | 137.0 | 134.2 | 130.2 | 143.0 | 22.0 | - | - | 150 |
| 12576 | 139.5 | 145.6 | 140.0 | 135.0 | 150.0 | 36.5 | - | - | 150 |
| 10356 | 146.8 | 151.0 | 148.6 | 142.8 | 159.5 | 33.0 | - | - | 100 |
| 39649 | 153.7 | 161.5 | 160.0 | 152.0 | 178.9 | 29.6 | - | - | 135 |
| 12577 | 156.0 | 162.3 | 158.8 | 151.8 | 167.3 | 36.7 | - | - | 100 |
| 462572 | 203.5 | 208.5 | 205.9 | 200.9 | 216.0 | 24.0 | - | - | 60 |
| 39666 | 216.0 | 223.6 | 223.0 | 213.0 | 241.5 | 29.1 | - | - | 100 |
